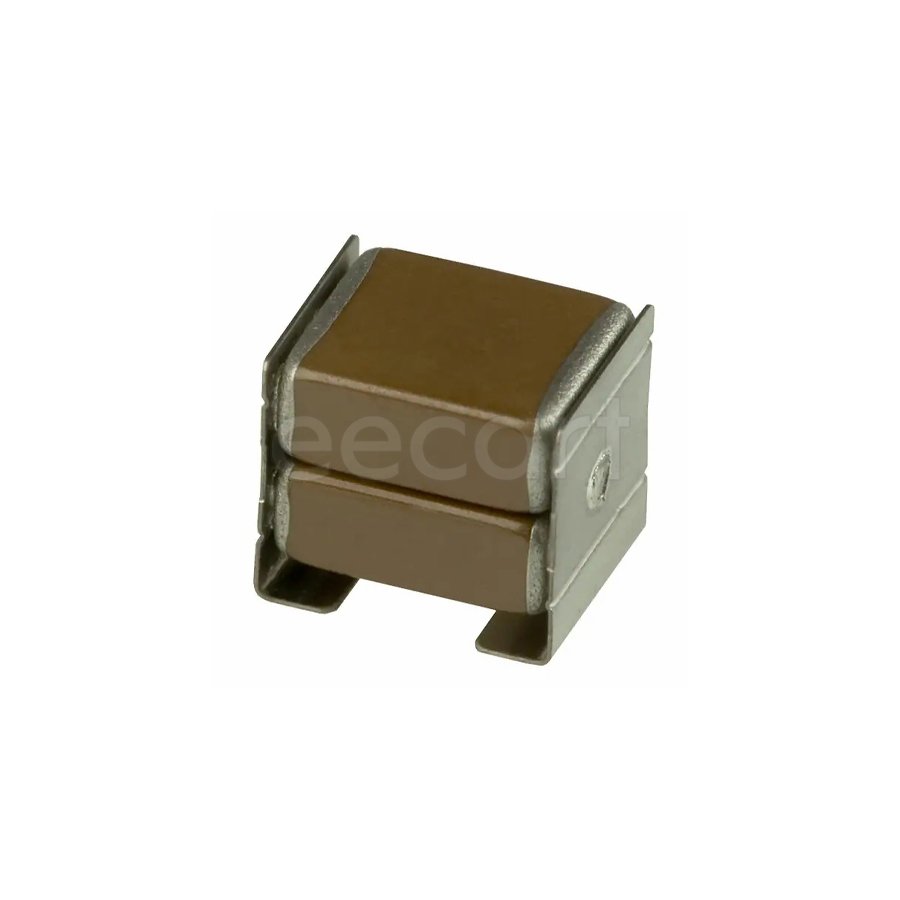

CKG57NX7T2J105M500JH
Manufacturer:
TDK Corporation
Mfr.Part #:
CKG57NX7T2J105M500JH
Datasheet:
Description:
Ceramic Capacitors SMD-2 SMD/SMT 1 µF 20 % 630 V
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Voltage Rating (DC) | 630 V |
| Tolerance | 20 % |
| Length | 6 mm |
| Width | 5.0038 mm |
| Termination | Metal |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | X7T |
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5750 |
| Composition(Kit Type) | Ceramic |
| Height | 5 mm |
| Packaging | Reel |
| Voltage Rating | 630 V |
| Depth | 5 mm |
| Thickness | 5.5118 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 480.014126 mg |
| Lead/Base Style | L-Lead |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Schedule B | 8532240020 |
Stock: 8020
Distributors
pcbx
pcbxUnit Price$2.75373
Ext.Price$2.75373
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.75373 | $2.75373 |
| 10 | $1.56452 | $15.64520 |
| 25 | $1.53872 | $38.46800 |
| 50 | $1.51334 | $75.66700 |
| 100 | $1.48838 | $148.83800 |
| 300 | $1.46383 | $439.14900 |
| 500 | $1.43970 | $719.85000 |
| 1000 | $1.37644 | $1376.44000 |
